Flexible joint
Products
Click to view detailed specifications.
• FLEXTECH Flexible Joint
· A flexible joint designed to accommodate horizontal and vertical displacement caused by relative movement between water tanks or booster pumping systems and connected piping during seismic events.
·Meets the durability design requirements of
FM 1920.
· By adjusting the length according to required expansion and contraction, it can be applied to piping systems for seismic design in water tank facilities, pump systems, chemical tank installations, and related equipment.
• Applications of Flexible Joints
· Connection points of water supply and discharge pipes in water tanks
· Horizontal piping of water tanks
(installed with offset application)
· Suction and discharge ports of booster pumping systems
Certifications |
 |
Operating Conditions |
| Operation Pressure: 175psi, 300psi |
| Norminal Diameter: DN25(1")~DN600(24") |
| Design Temperature: -40℃~+350℃ |
| Flange Rating: 10K(#150), 20K(#300) |
| Seismic Test : ASME B31.1 |
Structure & Materials |
| Connection Type: Flange, Groove, Weld End |
| EndConnection Matrial:STS304 Carbon Steel |
| Bellows Material: STS304,STS316L,Inco.625 |
| Braid Material: STS304 Wire |
| Paint : Powder Coating (Powder Coating) |
• Types of Flexible Joint End Connections
• Types of Flexible Joints
MFH-CF (Flange Type)
MFH-CG (Groove Type)
MFH-SF (Flange Type)
MFH-HX (Hex Nipple Type)

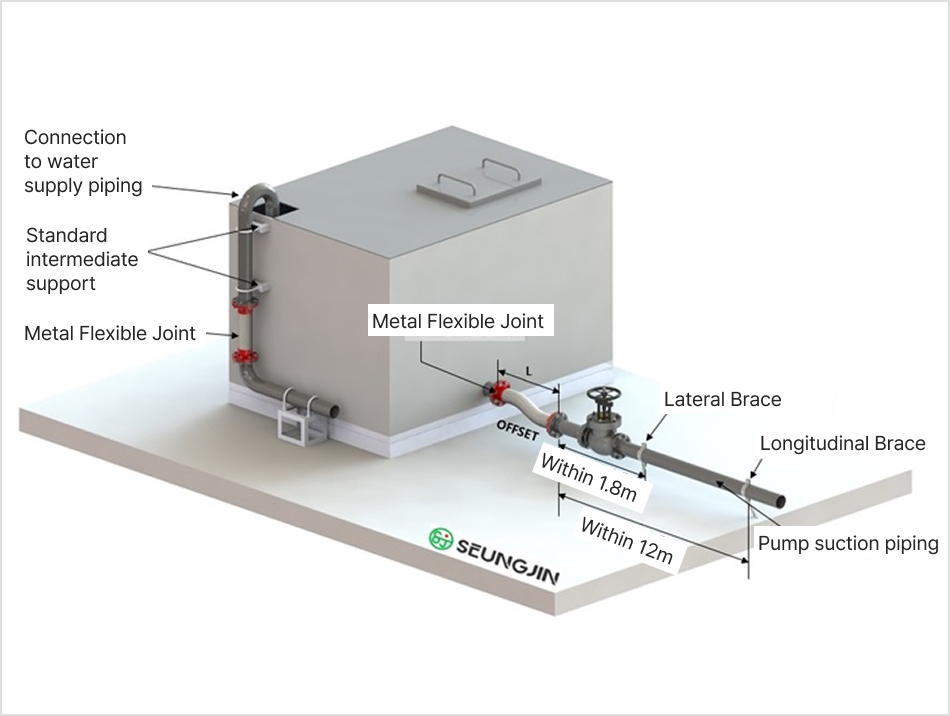

• Metal Flexible Joint Installation
MFH
Click to view detailed specifications.
• FLEXTECH Flexible Joint
· A flexible joint designed to accommodate horizontal and vertical displacement caused by relative movement between water tanks or booster pumping systems and connected piping during seismic events.
· Meets the durability design requirements of FM 1920.
· By adjusting the length according to required expansion and contraction, it can be applied to piping systems for seismic design in water tank facilities, pump systems, chemical tank installations, and related equipment.
• Applications of Flexible Joints
· Connection points of water supply and discharge pipes in water tanks
· Horizontal piping of water tanks (installed with offset application)
· Suction and discharge ports of booster pumping systems
Certifications |
|
Operating Conditions |
| 1. Operation Pressure: 175psi, 300psi |
| 2. Norminal Diameter: DN25(1")~DN600(24") |
| 3. Design Temperature: -40℃~+350℃ |
| 4. Flange Rating: 10K(#150), 20K(#300) |
| 5. Seismic Test : ASME B31.1 |
Structure & Materials |
| 1. Connection Type: Flange, Groove, Weld End ,etc |
| 2. End-Connection Matrial: STS304 / Carbon Steel |
| 3. Bellows Material: STS304, STS316L, Inco.625 ,etc |
| 4. Braid Material: STS304 Wire |
| 5. Paint : Powder Coating (Powder Coating) |
• Types of Flexible Joint End Connections
• Types of Flexible Joints
MFH-CF (Flange Type)
MFH-CG (Groove Type)
MFH-SF (Flange Type)
MFH-HX (Hex Nipple Type)
• Metal Flexible Joint Installation
