Click to view detailed specifications.
• Advanced Technology of FLEXTECH Seismic Separation Joint
· Passed world-class pressure tests
(175psi, 250psi, 300psi)
· The only test machine in the world capable of ±X, Y, Z 600mm maximum displacement testing
· Korea’s only KFI-certified ±X, Y, Z 400mm maximum expansion cycle test passed
· Equipped with large-diameter, high-pressure, high-expansion manufacturing and testing facilities
· Holds globally recognized certifications with top technological superiority (FM, UL, KFI, KC)
• Outstanding Features of FLEXTECH Seismic Separation Joint
· Loop-type design: lightweight, easy installation, minimal installation space required
· Korea’s first shipping-bar bolt & nut fastening method (design patent)
· Various product types and end connectors for different installation environments
· Flexible modification design capability according to installation conditions
· Available in various materials, pressure ratings, and displacement absorption capacities depending on installation environment
Certifications |
    |
Operating Conditions |
| Operation Pressure: 175psi, 250psi, 300psi |
| Norminal Diameter: DN25(1")~DN600(24") |
| Design Temperature: -40℃~+350℃ |
| Movement: ±XYZ 50mm~600mm |
| Flange Rating: 10K(#150), 20K(#300) |
Seismic Test : ASME B31.1 |
Structure & Materials |
| Connection Type: Flange, Groove, Weld End |
| Bellows Material: STS304,STS316L,Inco.625 |
| Braid Material: STS304 Wire |
| Elbow&Turn Material: STS304 / Carbon Steel |
| Flange Material : STS304 / Carbon Steel |
Paint : Powder Coating (Powder Coating) |

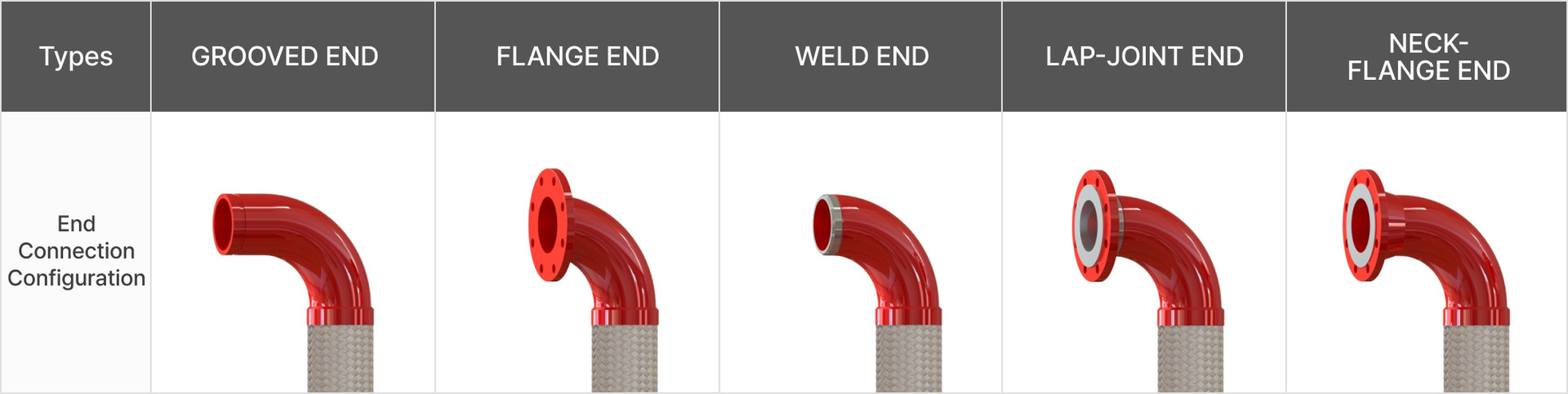

• Types of Seismic Separation Joint End Connections
• Seismic Separation Joint – U Type
SSJ U - Groove End Type
SSJ U - Flange End Type
SSJ U - Weld End Type
• Seismic Separation Joint – Special U Type
SSJ SU - Flange Type
• Seismic Separation Joint Installation
U TYPE
Click to view detailed specifications.
•Advanced Technology of FLEXTECH Seismic Separation Joint
· Passed world-class pressure tests (175psi, 250psi, 300psi)
· The only test machine in the world capable of ±X, Y, Z 600mm maximum displacement testing
· Korea’s only KFI-certified ±X, Y, Z 400mm maximum expansion cycle test passed
· Equipped with large-diameter, high-pressure, high-expansion manufacturing and testing facilities
· Holds globally recognized certifications with top technological superiority (FM, UL, KFI, KC)
• Outstanding Features of FLEXTECH Seismic Separation Joint
· Loop-type design: lightweight, easy installation, minimal installation space required
· Korea’s first shipping-bar bolt & nut fastening method (design patent)
· Various product types and end connectors for different installation environments
· Flexible modification design capability according to installation conditions
· Available in various materials, pressure ratings, and displacement absorption capacities depending on installation environment
Certifications |
| |
Operating Conditions |
| 1. Operation Pressure: 175psi, 250psi, 300psi |
| 2. Norminal Diameter: DN25(1")~DN600(24") |
| 3. Design Temperature: -40℃~+350℃ |
| 4. Movement: ±XYZ 50mm~600mm |
| 5. Flange Rating: 10K(#150), 20K(#300) |
6. Seismic Test : ASME B31.1 |
Structure & Materials |
| 1. Connection Type: Flange, Groove, Weld End,etc |
| 2. Bellows Material: STS304, STS316L, Inco.625,etc |
| 3. Braid Material: STS304 Wire |
| 4. Elbow & Turn Material: STS304 / Carbon Steel |
| 5. Flange Material : STS304 / Carbon Steel |
6. Paint : Powder Coating (Powder Coating) |

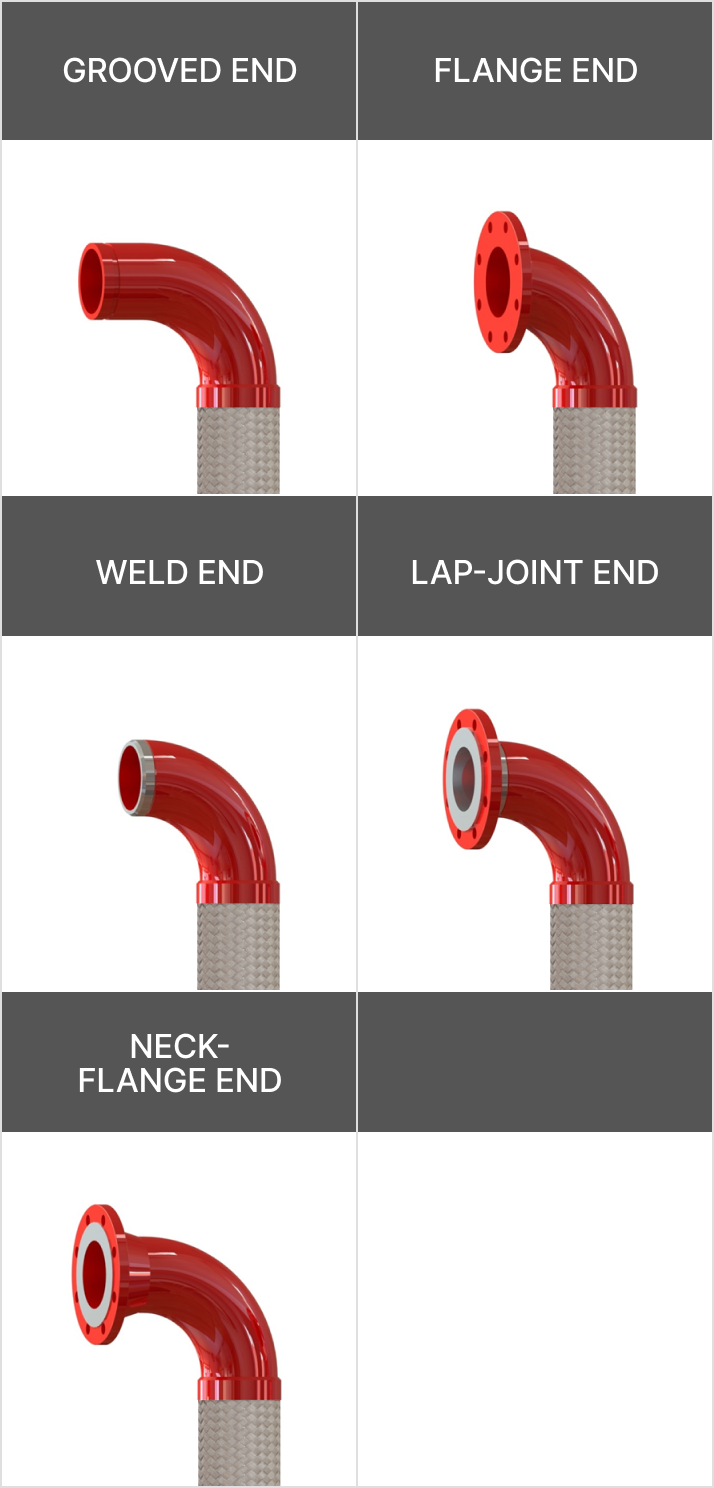

• Types of Seismic Separation Joint End Connections
• Seismic Separation Joint – U Type
SSJ U - Groove End Type
SSJ U - Flange End Type
SSJ U - Weld End Type
• Seismic Separation Joint – Special U Type
SSJ SU - Flange Type
• Seismic Separation Joint Installation
