Click to view detailed specifications.
V TYPE : SSJ V90 type
Click to view detailed specifications.
• Advanced Technology of FLEXTECH Seismic Separation Joints
· Passed world-class pressure tests
(175 psi, 250 psi, 300 psi)
· The only testing machine in the world capable of ±X, Y, Z 600 mm maximum displacement testing
· Equipped with manufacturing and testing facilities for large diameter, high pressure, and high flexibility products
· Certified both domestically and internationally with globally recognized approvals
(FM, UL, KC)
· KC certification approved for application in fire protection piping and potable water piping systems
• Outstanding Features of FLEXTECH Seismic Separation Joints
· LOOP TYPE design — lightweight, easy on-site installation, and minimal installation space required
· LOOP TYPE design — lightweight, easy on-site installation, and minimal installation space required
· Various product types and end connectors available to suit different installation environments
· Custom modification design capability based on installation conditions
· Available in a wide range of materials, pressure ratings, and displacement capacities according to installation requirements
Certifications |
   |
Operating Conditions |
| Operation Pressure: 175psi, 250psi, 300psi |
| Norminal Diameter: DN25(1")~DN600(24") |
| Design Temperature: -40℃~+350℃ |
| Movement: ±XYZ 50mm~600mm |
| Flange Rating: 10K(#150), 20K(#300) |
Seismic Test : ASME B31.1 |
Structure & Materials |
| Connection Type: Flange, Groove, Weld End |
| Bellows Material: STS304,STS316L,Inco.625 |
| Braid Material: STS304 Wire |
| Elbow&Turn Material: STS304 / Carbon Steel |
| Flange Material : STS304 / Carbon Steel |
Paint : Powder Coating (Powder Coating) |

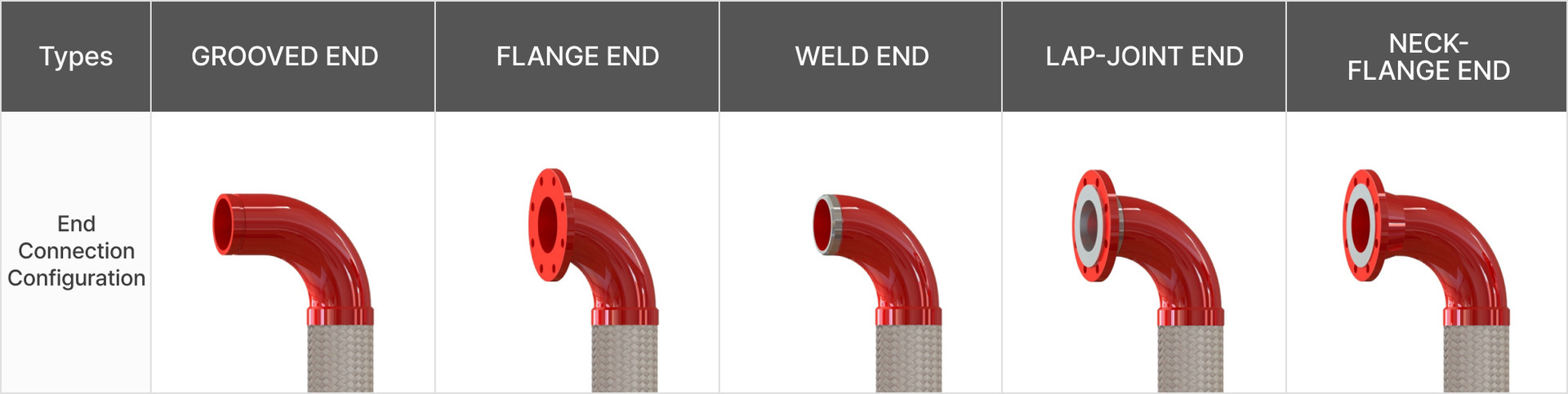

• Types of Seismic Separation Joint End Connections
• Seismic Separation Joint V60 Type
SSJ V - Groove End Type
SSJ V - Flange End Type
SSJ V- Weld End Type
• Seismic Separation Joint V90 Type
SSJ V90 A - Groove End Type
SSJ V90 A - Flange End Type
SSJ V90 B - Groove End Type
SSJ V90 B - Flange End Type
• Seismic Separation Joint Installation
V TYPE : SSJ V60 type
V TYPE : SSJ V90 type
Click to view detailed specifications.
Click to view detailed specifications.
• Advanced Technology of FLEXTECH Seismic Separation Joints
· Passed world-class pressure tests (175 psi, 250 psi, 300 psi)
· The only testing machine in the world capable of ±X, Y, Z 600 mm maximum displacement testing
· Equipped with manufacturing and testing facilities for large diameter, high pressure, and high flexibility products
· Certified both domestically and internationally with globally recognized approvals (FM, UL, KC)
· KC certification approved for application in fire protection piping and potable water piping systems
• Outstanding Features of FLEXTECH Seismic Separation Joints
· LOOP TYPE design — lightweight, easy on-site installation, and minimal installation space required
· Korea’s first Shipping Bar bolt-and-nut fastening system (design patent)
· Various product types and end connectors available to suit different installation environments
· Custom modification design capability based on installation conditions
· Available in a wide range of materials, pressure ratings, and displacement capacities according to installation requirements
Certifications |
| |
Operating Conditions |
| 1. Operation Pressure: 175psi, 250psi, 300psi |
| 2. Norminal Diameter: DN25(1")~DN600(24") |
| 3. Design Temperature: -40℃~+350℃ |
| 4. Movement: ±XYZ 50mm~600mm |
| 5. Flange Rating: 10K(#150), 20K(#300) |
6. Seismic Test : ASME B31.1 |
Structure & Materials |
| 1. Connection Type: Flange, Groove, Weld End,etc |
| 2. Bellows Material: STS304, STS316L, Inco.625,etc |
| 3. Braid Material: STS304 Wire |
| 4. Elbow & Turn Material: STS304 / Carbon Steel |
| 5. Flange Material : STS304 / Carbon Steel |
6. Paint : Powder Coating (Powder Coating) |

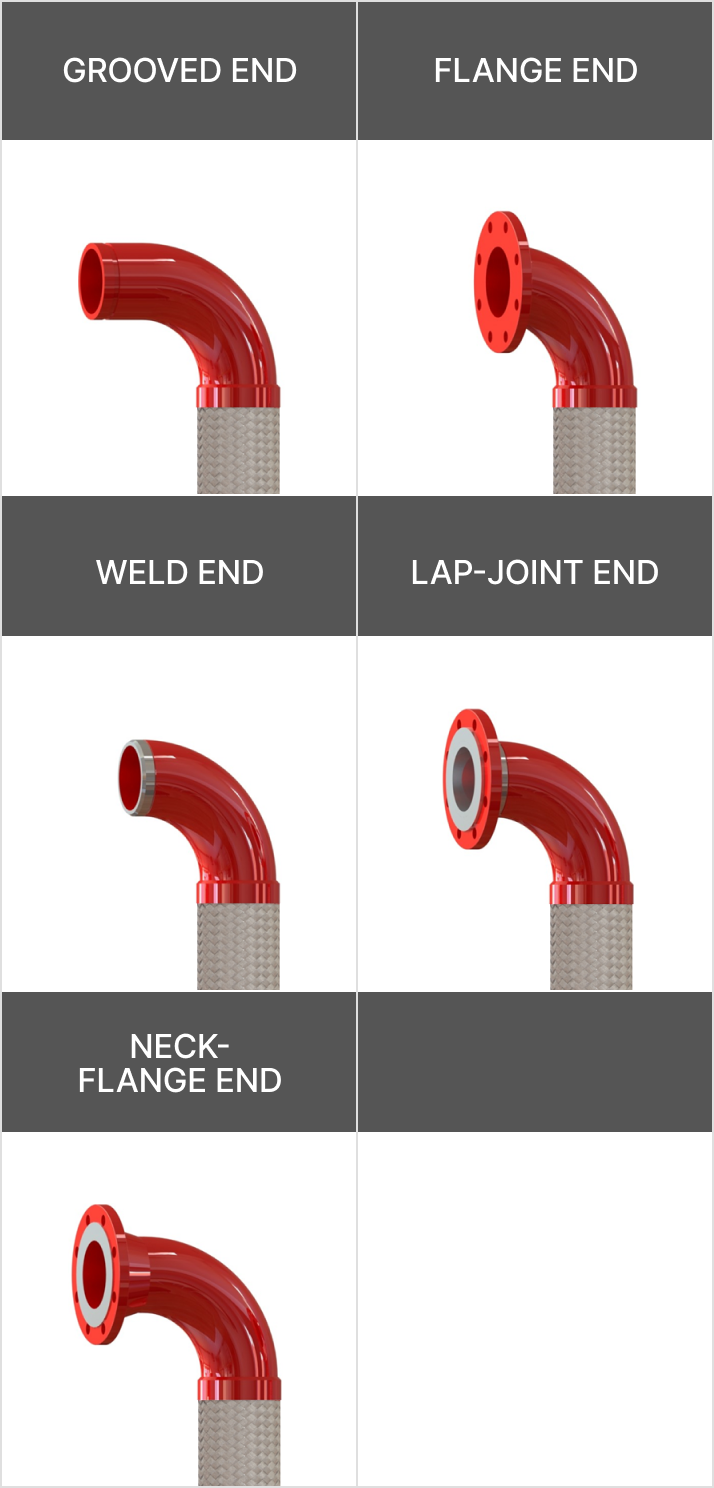

• Types of Seismic Separation Joint End Connections
• Seismic Separation Joint V60 Type
SSJ V - Groove End Type
SSJ V - Flange End Type
SSJ V- Weld End Type
• Seismic Separation Joint V90 Type
SSJ V90 A - Groove End Type
SSJ V90 A - Flange End Type
SSJ V90 B - Groove End Type
SSJ V90 B - Flange End Type
• Seismic Separation Joint Installation
